Air-Fuel Ratio Proportional Valve for Combustion System
Product Description
Item | Proportional Solenoid Valve |
Model | GIK/AG |
Structure | Regulating |
Pressure | High Pressure |
Material | Alloy, stainless steel
|
Media | Gas |
Temperature of Media | -15℃ - +60℃ |
Standard or Nonstandard | Standard |
Port Size | DN15-DN100 |
Nominal Pressure | PN16 |
Feature:
- Applied to both continuous and pulsed control;
- According to european standard (90/396/EEC).
- Technical parameter
- Valve Body Material: Die-casting Aluminium
- Sealing Material: NBR
- Metallic Parts: Alloy,stainless steel and brass
- Temperature: -15°C-+60°C
- Adjustment Range: Gas/Air : 1/1-1/20
- Applicable Medium: noncorrosive gases, for example:gas, natural gas, LPG etc
- Gas Pressure Regulation: 0.2mbar-120mbar
- Maximum Gas Pressure: 500mbar
- Connection Type:1.Thread interface(DN15-DN50)
- Nominal Pressure: PN16
According to standard EN746-2, the normal combustion of burner must have a constant air/fuel ratio. The air/gas proportioning valve GIK is used to achieve a constant air/fuel ratio so as to obtain the specific gas pressure under different conditions.

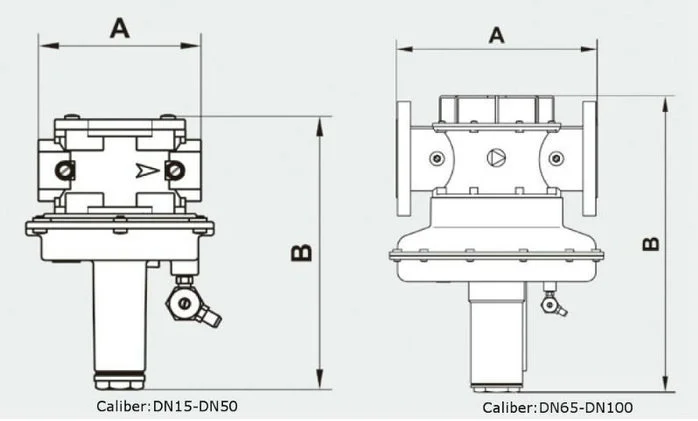

| Item | Caliber | A | B | Weight (kg) |
AG02 | DN15 | 120 | 155 | 0.85 |
| AG03 | DN20 | 120 | 155 | 0.85 |
| AG04 | DN25 | 120 | 193 | 1.4 |
| AG05 | DN32 | 160 | 245 | 3.3 |
| AG06 | DN40 | 160 | 245 | 3.3 |
| AG07 | DN50 | 160 | 245 | 3.3 |
| AG08 | DN65 | 290 | 471 | 12.2 |
| AG09 | DN80 | 310 | 478 | 12.6 |
| AG10 | DN100 | 350 | 504 | 17.8 |
EXAMPLE OF INSTALLATION
1. M16/RM N.C. manual reset solenoid valve
2. SM series jerk handle ON/OFF valve
3. FM gas filter
4. FRG/2MB series filter pressure regulator with safety shut off
5. Double solenoid valve
6. AG/RC series ratio caontrol regulator
7. Solenoid valves control device
8. Gas detector
9. Lever for remote SM ON/OFF valve control
10. Blower
11. Motorized throttle valve
